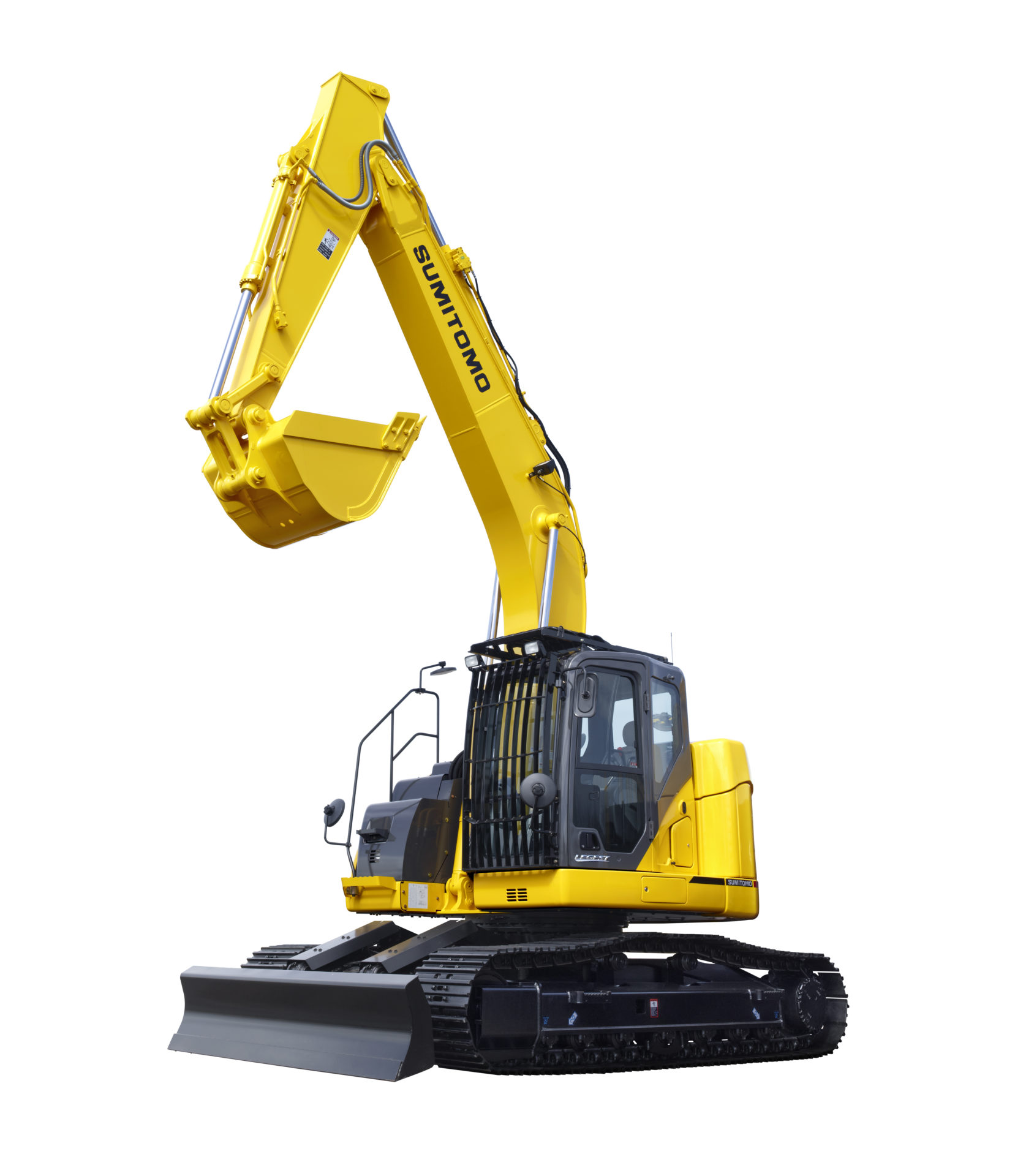

Excavator SH235X-6
- 25,000-25,500 kg Operating weight
-
0.50-1.10 m3
Bucket capacity
(ISO heaped) - 119.3kW/1800 min-1 Engine Rated Output
- 6,120~6,650mm Max digging depth
Features
Sumitomo's machine is equipped with a new generation engine and hydraulics system to help customers improve the perfomance of the machine while reducing environmental impact and running costs.
Base
- Std. operating weight
- 25,000 kg
- Boom length
- 5.70 m
- Arm length
- 2.94 m
- Bucket capacity(ISO heaped)
- 0.80 m3
- Shoe width
- 600 ㎜
- Counterweight
- 6,900 kg
Engine
- Make & model
- ISUZU AM-4HK1X
- Rated output
- 119.3 kW/1,800 min-1
- Piston displacement
- 5.193 ltr
Hydraulic System
- Main pump
- 2 variable displacement axial piston pumps with regulating system
- Max oil flow
- 2 × 211 ltr/min
- Max pressure
- 34.3 MPa
- (with auto power boost)
- 36.8 MPa
- Travel motor
- Varible displacement axial piston motor
- Parking brake type
- Mechanical disc brake
- Swing motor
- Fixed displacement axial piston motor
Performance
- Travel speed
- 5.0/3.2 km/h
- Drawbar pull
- 201 kN
- Grade ability
- 70%
- Ground pressure
- 56 kPa
- Max swing speed
- 11.8 min-1
- Swing torque
- 64.0 kN・ｍ（6,526 kgf・m)
- Bucket digging force(ISO 6015)
- 142 kN
- /with power boost
- 152 kN
- Arm digging force(ISO 6015)
- 103 kN
- /with power boost
- 110 kN
Others
- Fuel tank
- 320 ltr
- Hydraulic fluid tank
- 114 ltr
